The evolution of the DriveTrain

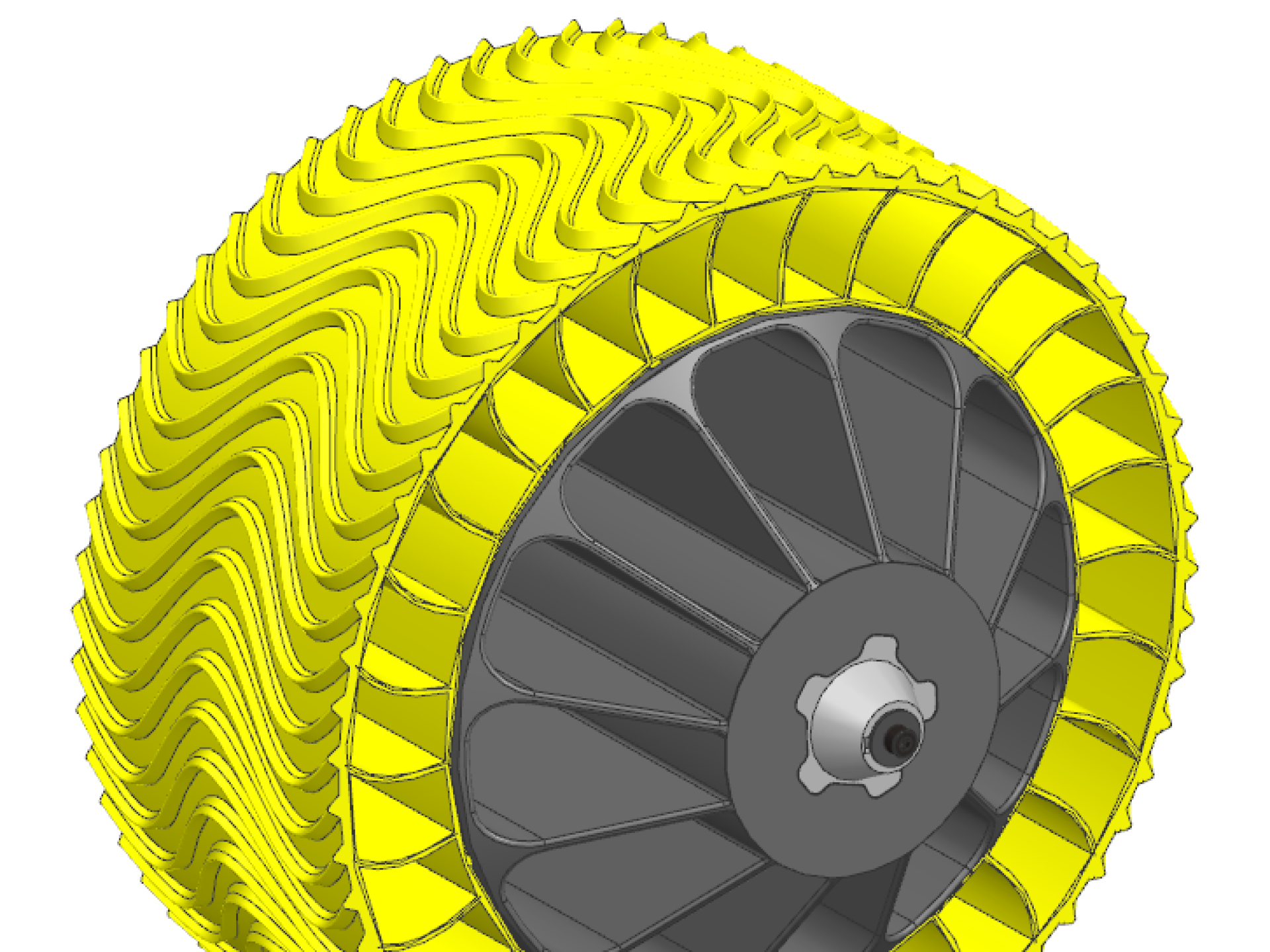

One of the main problems with the Drivetrain of Rover Meyer was the protection against water and dirt. Completely sealing a rotating part can be difficult. The goal was to design the motor and bearing area to be protected against water intrusion. Water can also introduce dirt into the system and damage it.Section view of the WheeluniteThe plain bearings were pressed into the 3D-printed rim. They slide over an aluminum bushing that was hard anodized to be more resistant to damage.To prevent lateral slippage, a thread was cut into the Maxon motors. A screw was thus used to prevent lateral slippage. By loosening the screw, it is possible to remove the wheel in a few seconds.A conical geometry at the rear end of the wheels allows water to drain off, along with dirt. At the front, a closed system with sealing ring protects against dirt and water.We would like to…
