Vortex throughflow measurement in steam, FHNW School of Engineering and Environment

Objectives

Development of a new measuring method for vortex flowmeters to determine steam quality.

Background

Endress+Hauser is a leading global provider of instrumentation, services and solutions for industrial process engineering. It provides process solutions for flow, level, pressure and temperature measurement, analytical measurement, data logging and digital communication. In addition to the actual mass flow, a new product should also be able to determine the steam quality in steam flows.

Result

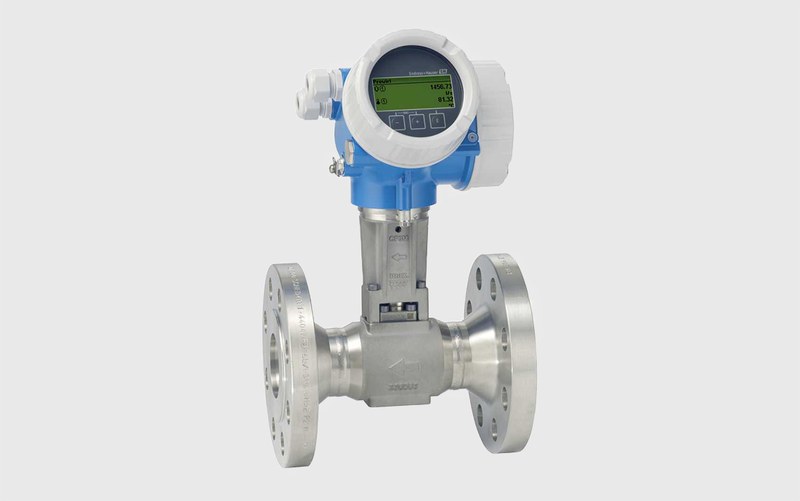

The measuring principle of vortex flow measurement is based on the Kármán vortex street: Opposing vortices occur behind an obstacle. The volume flow is directly proportional to the frequency of the vortices. With the aid of pressure and temperature, the density of the medium and thus the mass flow can be calculated in the device. The actual vortex signal is evaluated in an ASIC developed at the Institute for Sensor Technology and Electronics FHNW in cooperation with Endress+Hauser. The Institute for Thermal and Fluid Engineering FHNW developed the metrological evaluation algorithms for the determination of steam quality and tested the measuring method on the specially constructed steam test facility. No other vortex flowmeter on the market today (as of 06/2019) can determine steam quality. A real innovation for Endress+Hauser customers to monitor their steam processes, developed in cooperation between FHNW and Endress+Hauser Flowtec AG.
