Scale-down reactor for hydrogenation, FHNW School of Life Sciences

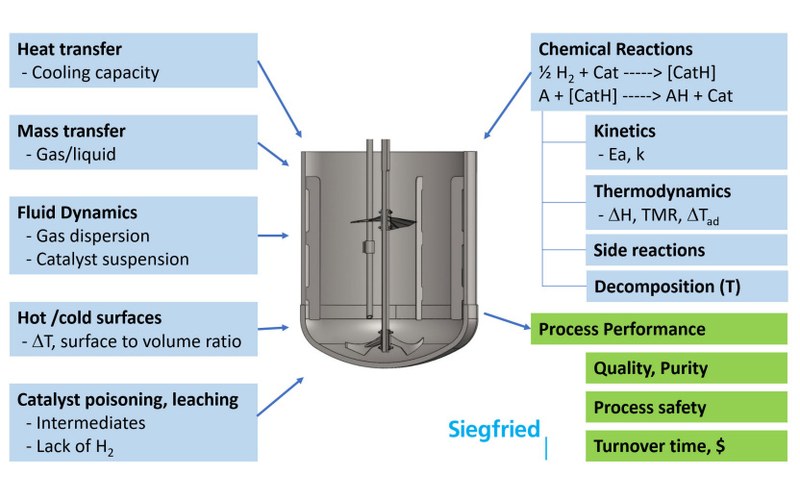

Hydrogenation reactions place high demands on process safety and chemistry. Important factors that influence the course of the reaction are heat transfer, mass transfer, fluid dynamics, hot and cold surfaces, catalyst positioning and leaching, reaction kinetics, thermodynamics, side reacitions and decomposition.

We developed a method for upscaling, achieving good process performance including quality, purity, safety, time and cost efficiency after just a few laboratory tests. This method could be useful for many chemical processes, as complex multi-step syntheses often involve at least one hydrogenation step.

One of the main challenges for scale-up/scale-down is the scale-dependent heat transfer behavior of reactors of different sizes and geometry. While volume and mass increase with a cubic dependency relative to the vessel diameter, the surface area for heat transfer exhibits only a squared dependency. Consequently, the heating/cooling capacity of laboratory reactors is considerably higher than that of reactors at the plant scale, indicating that kinetic effects or degradation on hot/cold vessel surfaces cannot be replicated and examined at the laboratory scale.  These effects may have a significant impact on process safety, product quality, or the yield of the process especially when impurity deposition and fouling occur, which reduce the heat transfer. Moreover, heterogeneous reactions in general are a challenge for scale-up because mass transfer, partial dissolution, and shear forces on particles influence the kinetics of the process. The majority of these effects are associated with mixing and stirring.

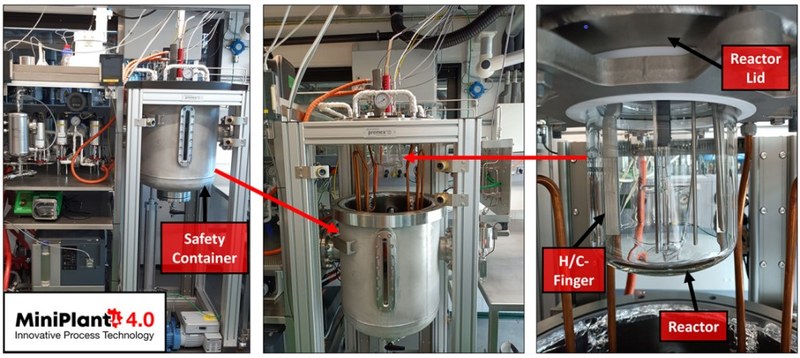

The following case study demonstrates how these primary challenges were addressed for a complex, heterogeneous hydrogenation. On the one hand, we have designed a 1.4 L Scale-Down-Reactor (SDR) of a 4000 L hydrogenator using geometrically similar stirrers, bottom shape, and baffles. This enabled us to simulate stirring effects by changing the stirrer speed, with comparable response on mixing, dispersion, mass transfer, and shear. We overcame the challenge of differing heat exchange surface-to-volume ratios by incorporating a heating/cooling finger (H/C-Finger) with limited surface area in a quasi-adiabatic reactor.

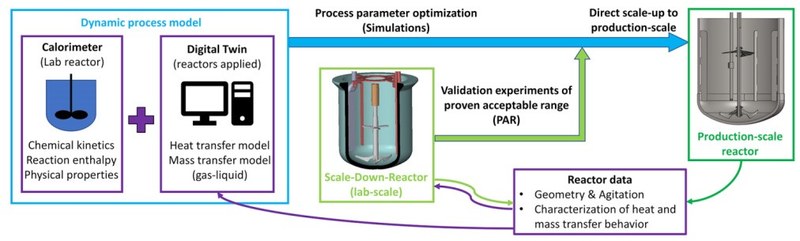

The case study was conducted using an iterative scale-up strategy where information of the large-scale reactor is processed to an in silico reactor model (digital twin). Based on the digital twin and information about the chemical process, a dynamic process model is developed. The model is used to optimize process parameters while simulating the production-scale process. Through laboratory-scale experiments that mimic production-scale conditions, the proven acceptable range (PAR) for those process parameters is subsequently validated. Following this, a direct scale-up to production can occur with high confidence, eliminating the need for intermediate or pilot-scale runs. The information resulting from the production-scale run can be used to iteratively improve the process model and experimental setup.
